Disintegration Testers
Leading Manufacturers, Exporters and Wholesaler of 2 Station Disintegration Tester (ED-2L), 3 Station Park Out Disintegration Tester, 3 Station Suppository Disintegration Tester (ESDT-3), 4 Station Disintegration Tester (ED-4AL), 6 Station Disintegration Tester, Dissoflux Ultrasonic Disintegration Testers and Semi Automatic Park Out Disintegration Tester from Navi Mumbai.
| Business Type | Manufacturer, Exporter, Supplier |
| Type | Disintegration Tester |
| Material | Transparent Acrylic, S.S. 304 |
| No. Of Stroke | 30 +1 Stroke/minute |
| Stroke Height | 55 Mm +2 Mm |
| Motor | DC Stepper Motor Of 6V DC, 3.5 Kg Cm Torque |
| No. Of Baskets | 2 Nos. (Each With 6 Test Tubes) |
| Heater | 400 Watts, S.S. 304 |
| Temperature Range | 20o C To 39.9o C |
| Temperature Control Accuracy | +0.5o C |
| Timer | 1 Sec. To 99 Min. & 59 Sec., 1 Min. To 9 Hrs & 59 Min. |
| Power Supply | 220/230 VAC, 50/60 Hz, 500 VA |
| Dimensions | (350 X 390 X 510) Mm (approx.) |
| Weight | Net 23 Kgs, Gross 28 Kgs |
Features
- Complies with USP, IP, Ph. Eur. specifications
- Snap-ClickTM loading and a swivel free basket movement
- Programmable Timer with alarm and temperature controller
- External probe for beaker temperature validation
- Illuminated bath for better visibility
Specifications:
| No. of stroke | 30 +1 stroke/minute |
| Stroke height | 55 mm +2 mm |
| Motor | DC stepper motor of 6V DC and 3.5 kg cm torque |
| No. of baskets | 2 nos. (Each having 6 test tubes) |
| Water bath | 6 mm thick transparent acrylic |
| Heater | 400 watts, S.S. 304 |
| Temperature range | 20o C to 39.9o C |
| Temperature resolution | 0.1o C |
| Temperature control accuracy | +0.5o C |
| Timer | Range 1- 1 sec. to 99 min. & 59 sec. Range 2- 1 min. to 9 hrs & 59 min. |
| Timer resolution | Range 1- 1 sec. Range 2- 1 min |
| Power supply | 220/230 VAC, 50/60 Hz, 500 VA |
| Dimensions (L x W x H) | (350 x 390 x 510) mm (approx.) |
| Weight | Net 23 kgs and Gross 28 kgs |
| Business Type | Manufacturer, Exporter, Supplier |
| Application | Industrial Use |
| Temperature Capacity | High Temperature |
| Country of Origin | India |
| Operating Current | Triple Phase |
| Driven Type | Unique Camless Drive |
| Type | Disintegration Tester |
| Compliance | Complies With USP, IP, Ph. Eur. Specifications |
| Feature | Basket Park-out From Beaker,Print Report Of Test Results And Validation,Individual Motor And Timer With External Probe For Each Basket,Moulded Bath With Slide-up Cover,Ergonomically Designed And Magnetically Coupled Basket For Easy Loading,LAN Connectivit |
Features
- Complies with USP, IP, Ph. Eur. specifications
- Basket park-out from beaker
- Unique camless drive
- Print report of test results and validation
- Individual motor and timer with external probe for each basket
- Moulded bath with slide-up cover
- Ergonomically designed and magnetically coupled basket for easy loading
- LAN connectivity for data transfer to a computer
| Business Type | Manufacturer, Exporter, Supplier |
| Material | Metal and Plastic |
| Heating Type | Bathless |
| Maintenance | Maintenance-free |
| Heater Plates | Efficient For Quick Heating |
| Drive Type | Camless |
| Reporting | Print Test Results |
| Motor & Timer | Individual For Each Basket |
| Basket Design | Ergonomic & Magnetically Coupled |
| Temperature Range | 15°C To 40°C |
| Operation Modes | Auto & Manual |
Features :
- The ESDT-3 tests the disintegration time of suppositories as per the latest Ph. Eur.
- 3 independent test stations perform tests simultaneously
- All test cylinders turn 180 o C
- automatically every 10 minutes
- Test cylinders turning interval can be programmed from 1 min to 99 min
- Removable thermostat can be programmeed to maintain temperature between 30 o C to 50 o C (+/- 0.5 o C) in the bath
- Built in slow water circulation in 12 litres clear Perspex water bath as per Ph. Eur. requirements
Specification:
| Temperature range | 30 o C to 40 o C |
| Temperature accuracy | +0.5 o C |
| Temperature resolution | 0.1 o C |
| Timer range | 1 min to 99 hrs, 59 min and 59 sec |
| Display | 6 digit LED 1 digit for step no. 1 to 6 4 digit for displaying time |
| Sample interval | 6 |
| Bath | 6 mm thick clear acrylic water bath |
| Bath size (L x W x H) | (310 x 160 x 260) mm |
| Heater | 750 Watt |
| Motor drive | 230 VAC/50 Hz 10 Kg cm synchronous motor |
| No. of baskets | Removable basket stand comprising of 3 baskets |
| Sweep | 180 o C after every set time |
| Power supply | 230 VAC, 50 Hz, 580 VA |
| Dimensions (L x W x H) | (345 x 380 x 340) mm |
| Business Type | Manufacturer, Exporter, Supplier |
| Type | Disintegration Tester |
| Basket Capacity | 4 USP Baskets |
| Control | Independent Timer And Motor For Each Pair Of Baskets |
| Loading Mechanism | Snap-click Loading |
| Basket Movement | Swivel Free Movement |
| Illumination | Green Illumination For Visibility |
| Temperature Control | Programmable Controller |
| Water Circulation | Magnetically Coupled Pump For Circulation |
- Complies with USP. IP and Ph. Eur. specifications
- Supports 4 USP baskets
- Each pair of baskets controlled by independent timer and motor
- Snap-click™ loading and a swivel free basket movement
- Green illumination for better visibility of disintegration process
- Programmable temperature controller
- Magnetically coupled pump for water circulation in the bath.
| Business Type | Manufacturer, Exporter, Supplier |
| Condition | New |
| Automatic Grade | Automatic |
| Application | Industrial Use,For Testing Disintegration Of Tablets And Capsules |
| Country of Origin | India |
| Type | Disintegration Tester |
| Feature | Supports 6 USP Basket Assembly,3 Pair Of Baskets Are Controlled By Independent Timer And Motor,Snap ClickTM Loading And Swivel Free Basket Movement,Green Illumination For Better Visibility Of Disintegration Process,Programmable Temperature Controller,Magn |
| Additional Info | Printer Connectivity And Basket Assembly For Capsule Analysis Are Optional Features. |
Features:
- Supports 6 USP basket assembly
- 3 pair of baskets are controlled by independent timer and motor
- Snap clickTM loading and swivel free basket movement
- Green illumination for better visibility of disintegration process
- Programmable temperature controller
- Magnetically coupled pump for water circulation in the bath
- Auto parking of the baskets at the top position at the end of the test
- External probe for beaker temperature validation
- Dual range timer
- Maintenance free smooth drive
- Printer connectivity (optional)
- Basket assembly for capsule analysis (optional)
| Business Type | Manufacturer, Exporter, Supplier |
| Application | Measures API Permeation,Mimics GI Tract Lining,Sample Collection |
| Type | Ultrasonic Disintegrator |
| Material | Specialized Lipid-infused Membrane, Stainless Steel |
| Additional Features | Reusable Permeation Chambers, Stirring Rod With Adjustable Rpm |
| Included Accessories | Micro Sampling Cannula |
| Power Source | Electricity |
| Maximum RPM | Adjustable |
| Data Collection Method | Micro Sampling Cannula |
| Maintenance | Regular Cleaning And Calibration Required |

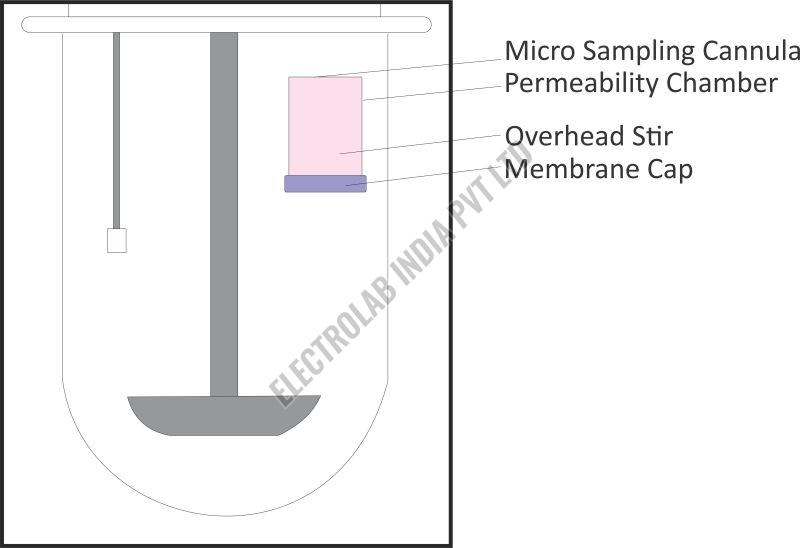

| Measures the permeation of API via a specialized lipid infused membrane from the dissolution vessel into the permeation chamber |
| The specialized lipid membrane mimics the in vivo gastrointestinal tract lining |
| Reusable permeation chambers- different sized chambers for varying media volumes |
| The permeation chamber has a stirring rod with adjustable rpm to maintain uniform concentration within the chamber |
| Micro sampling cannula to allow sample collection from the permeation chamber |
| Business Type | Manufacturer, Exporter, Supplier |
| Type | Semi Automatic Park Out Disintegration Tester |
| Compliance | Complies With USP, IP, Ph. Eur. Specifications |
| Feature | Disintegration Time Registration Of Individual Tablets,Basket Park-out From Beaker,Unique Camless Drive,Print Report Of Test Results And Validation,Individual Motor And Timer With External Probe For Each Basket,Moulded Bath With Fliptop Cover,Ergonomicall |
| Model | 2 Station Semi Automatic Park Out Disintegration Tester (ed-2 Sapo) |
| Application | Testing Disintegration Time Of Tablets |
| AdditionalInfo | Ergonomically Designed For Easy Loading And Operation. |
- Complies with USP, IP, Ph. Eur. specifications
- Disintegration time registration of individual tablets
- Basket park-out from beaker
- Unique camless drive
- Print report of test results and validation
- Individual motor and timer with external probe for each basket
- Moulded bath with fliptop cover
- Ergonomically designed and magnetically coupled basket for easy loading
- 2 Station Semi Automatic Park Out Disintegration Tester (ed-2 Sapo).
