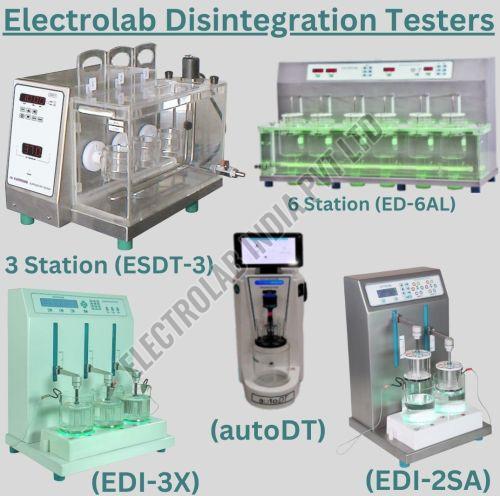

3 Station Suppository Disintegration Tester (ESDT-3)

Link Copied

0.5 - 5 Lac / Piece

Edit

Business Type	Manufacturer, Exporter, Supplier
Material	Metal and Plastic
Heating Type	Bathless
Maintenance	Maintenance-free
Click to view more

Product Details

Heater Plates

Efficient For Quick Heating

Drive Type

Camless

Reporting

Print Test Results

Motor & Timer

Individual For Each Basket

Basket Design

Ergonomic & Magnetically Coupled

Temperature Range

15Â°C To 40Â°C

Operation Modes

Auto & Manual

Features :

The ESDT-3 tests the disintegration time of suppositories as per the latest Ph. Eur.
3 independent test stations perform tests simultaneously
All test cylinders turn 180 ^o C
automatically every 10 minutes
Test cylinders turning interval can be programmed from 1 min to 99 min
Removable thermostat can be programmeed to maintain temperature between 30 ^o C to 50 ^o C (+/- 0.5 ^o C) in the bath
Built in slow water circulation in 12 litres clear Perspex water bath as per Ph. Eur. requirements

Specification:

Temperature range	30 ^o C to 40 ^o C
Temperature accuracy	+0.5 ^o C
Temperature resolution	0.1 ^o C
Timer range	1 min to 99 hrs, 59 min and 59 sec
Display	6 digit LED 1 digit for step no. 1 to 6 4 digit for displaying time
Sample interval	6
Bath	6 mm thick clear acrylic water bath
Bath size (L x W x H)	(310 x 160 x 260) mm
Heater	750 Watt
Motor drive	230 VAC/50 Hz 10 Kg cm synchronous motor
No. of baskets	Removable basket stand comprising of 3 baskets
Sweep	180 ^o C after every set time
Power supply	230 VAC, 50 Hz, 580 VA
Dimensions (L x W x H)	(345 x 380 x 340) mm
