0.5 - 5 Lac / Piece
| Business Type | Manufacturer, Exporter, Supplier |

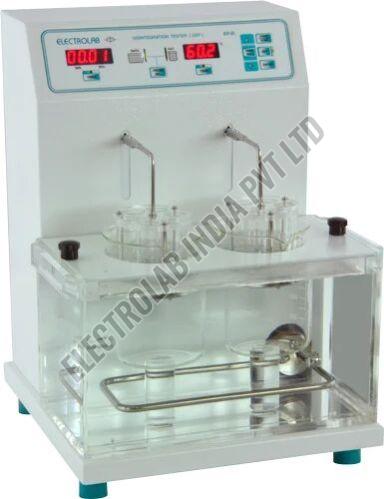

| Type | Disintegration Tester |
| Material | Transparent Acrylic, S.S. 304 |
| No. Of Stroke | 30 +1 Stroke/minute |
| Click to view more | |
Product Details
Stroke Height
55 Mm +2 Mm
Motor
DC Stepper Motor Of 6V DC, 3.5 Kg Cm Torque
No. Of Baskets
2 Nos. (Each With 6 Test Tubes)
Heater
400 Watts, S.S. 304
Temperature Range
20o C To 39.9o C
Temperature Control Accuracy
+0.5o C
Timer
1 Sec. To 99 Min. & 59 Sec., 1 Min. To 9 Hrs & 59 Min.
Power Supply
220/230 VAC, 50/60 Hz, 500 VA
Dimensions
(350 X 390 X 510) Mm (approx.)
Weight
Net 23 Kgs, Gross 28 Kgs
Features
- Complies with USP, IP, Ph. Eur. specifications
- Snap-ClickTM loading and a swivel free basket movement
- Programmable Timer with alarm and temperature controller
- External probe for beaker temperature validation
- Illuminated bath for better visibility
Specifications:
| No. of stroke | 30 +1 stroke/minute |
| Stroke height | 55 mm +2 mm |
| Motor | DC stepper motor of 6V DC and 3.5 kg cm torque |
| No. of baskets | 2 nos. (Each having 6 test tubes) |
| Water bath | 6 mm thick transparent acrylic |
| Heater | 400 watts, S.S. 304 |
| Temperature range | 20o C to 39.9o C |
| Temperature resolution | 0.1o C |
| Temperature control accuracy | +0.5o C |
| Timer | Range 1- 1 sec. to 99 min. & 59 sec. Range 2- 1 min. to 9 hrs & 59 min. |
| Timer resolution | Range 1- 1 sec. Range 2- 1 min |
| Power supply | 220/230 VAC, 50/60 Hz, 500 VA |
| Dimensions (L x W x H) | (350 x 390 x 510) mm (approx.) |
| Weight | Net 23 kgs and Gross 28 kgs |
