Bottle Rotating Apparatus
Leading Manufacturers, Exporters and Wholesaler of ERB-Au Air Bath Heating System and Water Bath Heating System from Navi Mumbai.
| Business Type | Manufacturer, Exporter, Supplier |
| Type | Air Bath Heating System |
| Supports Bottle Sizes | 10 Ml,50 Ml,100 Ml,250 Ml |
| Speed Control Range | 5 RPM To 60 RPM |
| Heating System | Forced Air |
| Operation | 24 X 7 Continuous |
| Door Lock | Automatic Detection |
| Port | Serial Port For Report Printing |
| Speed Range Programmable | 5 To 60 RPM, 5 To 80 RPM (optional) |
Feature's :
1. Supports
- 42 bottles of 10 ml each
- 18 bottles of 50 ml each
- 22 bottles of 100 ml each
- 12 bottles of 250 ml each
- Precise speed control from 5 RPM to 60 RPM with soft
- start facility
- Forced air heating system with programmable temperature range from 20 C to 40 C / 20 C to 60 C
- 20 x 4 LCD display
- 24 x 7 continuous operation
- 10 programmable protocols
- 12 sampling intervals in each protocol, timer ranging
- from 1 min to 999 Hr : 59 min
- Snap fitting of bottles facilitates easy replacement and
- removal
- Impact resistant clear polycarbonate air bath to
- withstand high temperature
- Automatic door lock detection
- Serial port for report printing
- Customizable racks available if it suites design
- Programmable 5 to 60 RPM
- Programmable 5 to 80 RPM (optional)

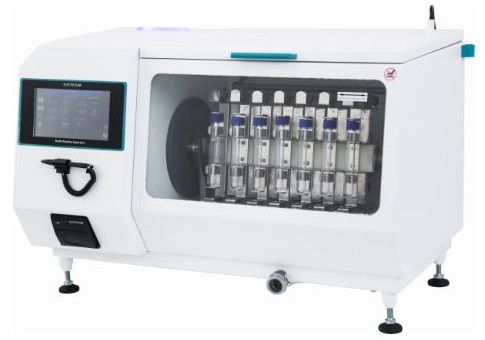

| Business Type | Manufacturer, Exporter, Supplier |
| Type | Water Bath Heating System |
| Capacity | Supports Various Bottle Capacities (e.g., 10ml, 200ml, 100ml, 250ml) |
| Speed Control | 5 To 60 RPM With Soft Start Facility |
| Temperature Range | 20°C To 60°C |
| Material | Clear Polycarbonate For Water Bath |
| Programmable Protocol | More Than 100 Protocols |
| Connectivity | LAN Connectivity |
| Compliance | 21 CFR Part 11 Compliant |
Support various capacity bottle (optional)
28 bottles of 10 ml each
10 bottles of 200 ml each
16 bottles of 100 ml each
08 bottles of 250 ml each
- BLDC drive and precise speed control from 5 to 60 RPM with soft start facility Programmable temperature in the water bath from 20°C to 60°C
- Snap fitting of bottles for easy placement and removal
- Robustly built clear polycarbonate water bath to withstand high temperatures
- Programmable Protocol more than 100 nos.
- LAN Connectivity
- Finger print module
- Audit trial
- E-signature
- 21 CFR part 11 compliant
- Customizable racks available if it suites design
- Built in thermal printer
- Multilevel security with password for 250 users with user programmable role
- D'light technclogy enabling audio visual indication of Instrument status
- 10000 test report storage
- Easy interchangeble shaft assembly
- Provision for checking temperature in running condition
